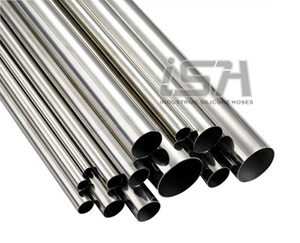

Aluminum Straight Pipe 300mm and 1 Meter (1ft&3ft) Long


ISH 6061 T6 Straight  Aluminum pipe/ Aluminum tubing is ideal for connect hoses for intercoolers, radiatrors, air induction, superchargers, or charger air cooler  etc.

Easy to replace, cut and adapt to your piping needs
Corrosion resistant and high temperature resistance, upto 250°C

Technical Specification
-Material: 6061-T6 Aluminum
-Mirrow polished finishing
-Wall Thickness: 1.8mm (OD <=76mm),2mm(OD>76mm)
-Bead rolled end type(Option:straight end)
-Totally Length Option:300mm,450mm,500mm,600mm.
-Available in 1ft &3t straigt aluminum pipe ,45°degree ,90°degree ,135°degree ,180° degree  aluminum pipe,
contact us directly for 15°,60°,75°  elbow and other unregular shapes aluminum pipes.


 ISH 6061-T6 Straight Aluminum Pipe- 300mm&1 meter (1ft&3ft) Long
straight aluminum pipe 1 ft 3 ft longstraight aluminum pipe-dia



Aluminum Pipe straight 300mm(1ft) Long

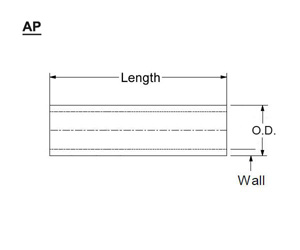

Part No OD(mm) OD(inch)  Length(ft)  Length(mm) Wall Thick(mm) Material
AP300-38 38 1.5" 1 300 1.8 6061 T6
AP300-51 51 2.0" 1 300 1.8 6061 T6
AP300-63 63 2.5" 1 300 1.8 6061 T6
AP300-76 76 3.0" 1 300 1.8 6061 T6
AP300-89 89 3.5" 1 300 2.0 6061 T6
AP300-102 102 4.0" 1 300 2.0 6061 T6

Aluminum Pipe straight 1 meter(3ft) Long
Part No OD(mm) OD(inch)  Length(ft)  Length(meter) Wall Thick(mm) Material
AP1M-38 38 1.5" 3 1 1.8 6061 T6
AP1M-51 51 2.0" 3 1 1.8 6061 T6
AP1M-63 63 2.5" 3 1 1.8 6061 T6
AP1M-76 76 3.0" 3 1 1.8 6061 T6
AP1M-89 89 3.5" 3 1 2.0 6061 T6
AP1M-102 102 4.0" 3 1 2.0 6061 T6
